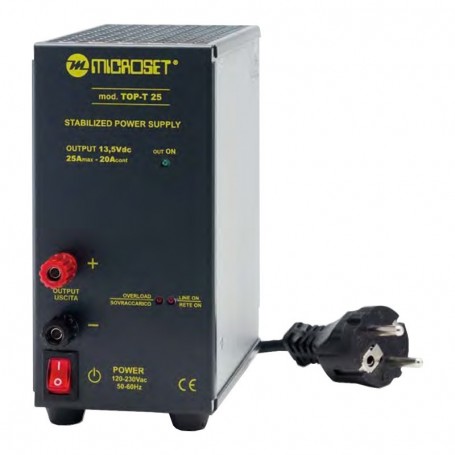

MICROSET TOP-T25

AC-DC POWER SUPPLY SWITCHING TOP QUALITY
COMPACT, RELIABLE, BLOWER LESS

Relevant innovations:
• High efficiency 92%
• Quite and E.M.I. less
• Very reliable
• Compact size
• MOS-POWER last technology
• Strong metallic box
• Very elegant
• Universal main voltage 110-230Vac

The valuable stabilized power supply with exclusive performance and features, small size, high current density.
Easy to transport, useful on expedition, contest and into limited shack, desk use.
Blower less, silent operate no noise emission.
Low ripple, high stability, continuous service.
Recommended to use on HF - VHF- UHF bands transmission and on all important applications where is required reliable and stable D C power source able to operate for very long time and universal main range 110-230Vac.

• OUTPUT: Vdc 13,5V; A max (duty cycle 70%) 25A; A (duty cycle 90%) 20A
• MAIN INPUT: 110-230V ±10% 50-60FÌZ
• MAINS STABILITY: ±0,5%
• LOAD STABILITY: ±0,4% typ. +300mV
• RIPPLE R.M.S.: 40mVtyp.
• PROTECTIONS: overload overvoltage
• SIZE WxDxH mm: 79x165x 160
• WEIGHT kg: 1,4
• ENVIR. TEMPERATURE: -10 +40°C
• HUMIDITY: 90% max
• ALTITUDE (U.S.L.): 2000 mt.
• COMPLIANCE: EMC 2014/30/UE, LVD 2014/35/UE, RoHs (lead free) CE mark
